Checking Inbound/Outbound server connectivity¶
What is covered within this guide?
Testing outbound connectivity from your server
Testing inbound connectivity to your server
Troubleshooting inbound connectivity issues
Testing Outbound connectivity from your server¶
To test general outbound connectivity from your server over a specific port. The following PowerShell command is extremely useful:
Test-NetConnection {Hostname/IP} -port {Port}
This command provides us with the following information:
The name of the remote computer (If a DNS name has been used)
The IP of the remote computer
The port used
The network adapter used for the connection
The source IP used within the connection test
Whether or not the remote address is accessible via ping
The Round-Trip Time in MS it took for the ping to complete
Whether or not the remote address is accessible via the specified port
This example output from the command:
PS C:\Users\Administrator\> Test-NetConnection portquiz.net -port 80
ComputerName: portquiz.net
RemoteAddress: 52.47.209.216
RemotePort: 80
InterfaceAlias: Ethernet
SourceAddress: 10.0.0.23
PingSucceeded: True
PingReplyDetails (RTT): 6 ms
TcpTestSucceeded: True
The service which we are attempting to connect to, portquiz.net, is a service which is publicly accessible on all ports. This is useful for checking whether a specific port is allowed outbound through the firewall, and helps indicate whether the connection is blocked by the Firewall and/or the remote endpoint
Test-Netconnection portquiz.net -port 80
Testing inbound connectivity to your server¶
The above PowerShell command is also quite powerful when testing inbound connectivity to your server. As this helps determine as to whether or not your source device is able to communicate over the required ports.
Things to note here are:
The server must be listening on the required port for the connection to be accepted
The relevant ports must be open on the firewall
If Windows firewall is enabled, the ports must be opened here.
Checking if a server is listening on a specific port¶
The following CMD command can be ran to determine if a server is listening on a specific port:
netstat -ano | find ":PORT"
This example output from the command:
C:\Users\Administrator\>netstat -ano | find ":3389"
TCP 0.0.0.0:3389 0.0.0.0:0 LISTENING 320
TCP 10.0.0.23:3389 80.244.179.100:61548 ESTABLISHED 320
TCP [::]:3389 [::]:0 LISTENING 320
UDP 0.0.0.0:3389 \*:\* 320
UDP [::]:3389 \*:\* 320
Alternatively, the following PowerShell command can be used:
Get-NetTCPConnection -State Listen -localport 3389
This example output from the command:
Get-NetTCPConnection -State Listen -localport 3389
LocalAddress LocalPort RemoteAddress RemotePort State AppliedSetting
------------ --------- ------------- ---------- ----- --------------
:: 3389 :: 0 Listen
0.0.0.0 3389 0.0.0.0 0 Listen
Checking if the port is open on your firewall¶
Dependant upon the type of firewall your server resides behind (i.e, dedicated or shared), the following documentation will guide you through securely opening ports via the ANS Portal:
How to check if Windows firewall is enabled¶
To check if Windows firewall is enabled you must:
Open the
Control PanelClick on
System and SecurityThen
Windows Defender Firewall

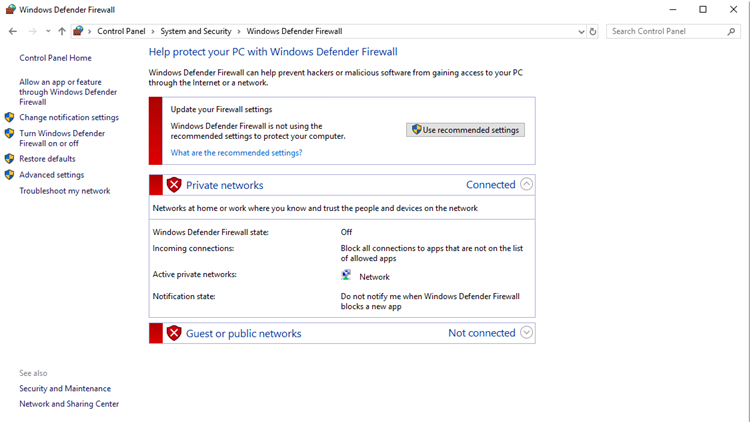

Here is an example of a Windows firewall configuration which is not enabled
It is worth noting that, typically, Windows Firewall does not need to be enabled as usually ports and traffic will be filtered via your external firewall. This essentially reduces the load on the server as it does not need to analyse and permit / reject traffic.
Troubleshooting inbound connectivity issues¶
There are a wide variety of methods and tools in which you are able to troubleshoot network connectivity issues. Here are a few examples:
Wireshark¶

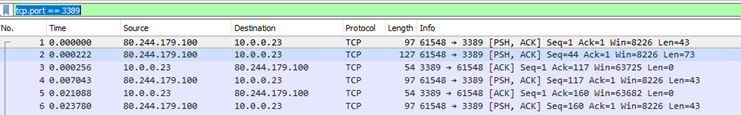

Wireshark can be used to monitor and capture traffic on a specific network interface. Filters can be applied when monitoring the traffic to help with troubleshooting. For example, the following filter would filter the results for traffic being transmitted over TCP port 3389:
tcp.port == 3389
Wireshark is free to use and can be downloaded here: https://www.wireshark.org/download.html
PowerShell¶
PowerShell can be used to create a temporary listener on Windows to assist when testing connectivity to the server over a specific port.
The commands to create a listener on Windows via PowerShell is as follows:
$Listener = [System.Net.Sockets.TcpListener]1234;
$Listener.Start();
The command to stop the listener would be:
$Listener.Stop();
Example output before running the command:
PS C:\Users\Administrator> Get-NetTCPConnection -State Listen -localport 1234
Get-NetTCPConnection : No matching MSFT_NetTCPConnection objects
Example output after running the command:
PS C:\Users\Administrator\> $Listener = [System.Net.Sockets.TcpListener]1234;
PS C:\Users\Administrator\? $Listener.Start();
Get-NetTCPConnection -State Listen -localport 1234
LocalAddress LocalPort RemoteAddress RemotePort State AppliedSetting
------------ --------- ------------- ---------- ----- --------------
0.0.0.0 1234 0.0.0.0 0 Listen
To stop the listener run:
PS C:\Users\Administrator> $Listener.Stop();
